Aluminum Composite Panel ACP 4mm Low Price for Wall Cladding
Our ACP panels are composed of two aluminum sheets enclosing a non-aluminum core. This unique structure gives the panels high rigidity, exceptional weather resistance, and excellent insulation properties. With a variety of customizable sizes and finishes, these panels provide a high-quality solution at an affordable price, ensuring that your project stays on budget without compromising on style or performance.
Description
Introduction to Aluminum Composite Panels (ACP)
Our Aluminum Composite Panel (ACP) is an affordable, durable, and versatile solution for wall cladding, offering the perfect balance of performance and cost-effectiveness. Designed for both commercial and residential applications, our 4mm ACP panels are ideal for enhancing the aesthetic appeal and functionality of building facades, interior walls, and decorative features. With a sleek marble finish, these panels provide an elegant, modern look that is easy to maintain, making them a popular choice for a wide range of construction projects.
Our ACP panels are composed of two aluminum sheets enclosing a non-aluminum core. This unique structure gives the panels high rigidity, exceptional weather resistance, and excellent insulation properties. With a variety of customizable sizes and finishes, these panels provide a high-quality solution at an affordable price, ensuring that your project stays on budget without compromising on style or performance.

| Luckybond Signage Grade | ||||
| Panel Thickness | Units | 2mm | 3mm | 4mm |
| Thickness of Aluminum Layers | mm | 0.21/0.21 | 0.21/0.21 | 0.4/0.4 |
| Weight | Kg/m² | 3.1/3.4 | 4.0/4.3 | 4.9/5.2 |
| Section Modulus W | cm³/m | 0.51 | 0.81 | 1.11 |
| Rigidity(E.I) | KNcm³/m | 345 | 865 | 1620 |
| Alloy of Aluminum Layers | AA1100H18 | |||
| Tensile Strength of Aluminum | N/mm² | Rm: I 45-I 85 | ||
| 0.2% Proof Stress | N/mm² | Rp 0.2: 110- 175 | ||
| Elongation | % | A50>3% | ||
| Liner Thermal Expansion | 2.0 mm/m(100℃ temperature difference) | |||
| Lacquering | Coil Coating. Fluorocarbon(e.g.PE) | |||
| Gloss(initial value) | % | 30-90 | ||
| Pencil Hardness | 2H | |||
| Temperature resistance | ℃ | -50~ +80 | ||
| Coating Thickness | 18μm | |||
| T-bend | 2T | |||
| Adhesion | grade 0.1mm*1mm*100/100 w/o fall off | |||
| Solvent Resistance | Beearable 100times(butannone) | |||
| Impact Resistance | 1/2φ*500g*30cm no rip | |||
| Boil water Resistance | 2h*98℃ no change | |||
| Color difference | △E≤2.0 | |||
Luckybond Building Grade
| Thickness | Unit | 4mm | 6mm |
| Thickness of Aluminum Layer’s Weight | mm | 0.5 | |
| Weight | Kg/m² | 7.5 | 10.5 |
| Fabrication width | mm | 1220-1520 | |
| Section Modulus(W) | cm³/m | 1.75 | 2 |
| Rigidity(E· l) | KNcm²/m | 2400 | 3100 |
| Alloy | EN AW-3003A | ||
| Temper of Cover Sheets | H 18/ H22 | ||
| Modulus of elasticity | N /mm² | 70000 | |
| Tensile Strength of cover sheets | N /mm² | Rm ≧ 130 | |
| Proof Stress (0.2%) | N /mm² | Rp0.2 ≧90 | |
| Elongation | % | A50≧5 | |
| Liner Thermal Expansion | 2.4 mm/m bei 100℃ temperature difference | ||
| Lacquering | Coil Coating. Fluorocarbon(e.g. PVDF) | ||
| Gloss(initial value) | % | 30-45 | |
| Pencil hardness | 2H | ||
| Temperature resistance | ℃ | -50~ +80 | |
1. Exceptional Durability and Rigidity
The Aluminum Composite Panel (ACP) is known for its superior strength and stability. The combination of two aluminum sheets with a non-aluminum core creates a panel that is both lightweight and highly durable. The ACP panels are resistant to bending, denting, and warping, even in harsh conditions. This makes them ideal for wall cladding applications where durability is crucial. The rigidity of the 4mm ACP ensures that it maintains its shape and structural integrity, providing a long-lasting solution for both exterior and interior applications.
2. Weather and Corrosion Resistance
Our Aluminum Composite Panel (ACP) offers outstanding resistance to the elements. Whether you are using it for outdoor wall cladding or interior applications exposed to moisture, these panels stand up to extreme weather conditions without degrading. The ACP panels are also resistant to corrosion, ensuring that your surfaces remain intact and aesthetically pleasing for years. With its superior weather resistance, this 4mm ACP provides a reliable and long-lasting option for buildings located in coastal or humid environments.
3. Lightweight and Easy to Handle
One of the significant advantages of our ACP is its lightweight nature. Despite its robust construction, Aluminum Composite Panels are lighter than traditional materials like concrete or stone, making them easier to handle and install. This lightweight characteristic reduces transportation costs and installation time, providing a cost-effective solution for large-scale projects. Whether you're cladding a building facade or installing decorative wall panels, the ease of handling and installing these ACP panels ensures smooth project execution.
4. Aesthetic Appeal with Marble Finish
Our Aluminum Composite Panels come with a sleek marble finish, offering a contemporary and sophisticated look for any space. The marble appearance adds elegance to both modern and traditional architectural designs, making it suitable for a variety of applications, from building facades to interior design projects. The reflective qualities of the marble finish enhance light distribution, creating a visually striking effect. This attractive finish elevates the aesthetic appeal of any structure, making it an ideal choice for both commercial and residential projects.
5. Low Maintenance and Easy to Clean
The ACP panels require minimal maintenance, thanks to the high-quality coatings used in their production. The smooth, non-porous surface is easy to clean, and it resists the accumulation of dust, grime, and pollutants, ensuring that the panels maintain their pristine appearance over time. Regular cleaning with mild soap and water is sufficient to keep the surface looking fresh. This low-maintenance characteristic makes ACP panels an ideal option for building cladding, especially in high-traffic areas where cleanliness is a priority.
6. Customizable for Specific Needs
Our Aluminum Composite Panels offer a high degree of customization. Available in various sizes, thicknesses, and finishes, these panels can be tailored to meet the exact requirements of your project. Whether you need a custom color, specific dimensions, or a particular finish, we can accommodate your needs to ensure the perfect solution for your project. The flexibility in design makes ACP panels suitable for a wide range of applications, from large-scale commercial buildings to smaller decorative installations.
1. Wall Cladding
One of the most common applications of Aluminum Composite Panels is wall cladding. Whether for commercial or residential buildings, the 4mm ACP provides a durable, weather-resistant, and aesthetically pleasing solution for cladding exterior walls. These panels not only improve the building’s appearance but also provide additional protection against the elements. With a wide range of finishes available, including the sleek marble finish, ACP panels can be customized to match the design requirements of any project.

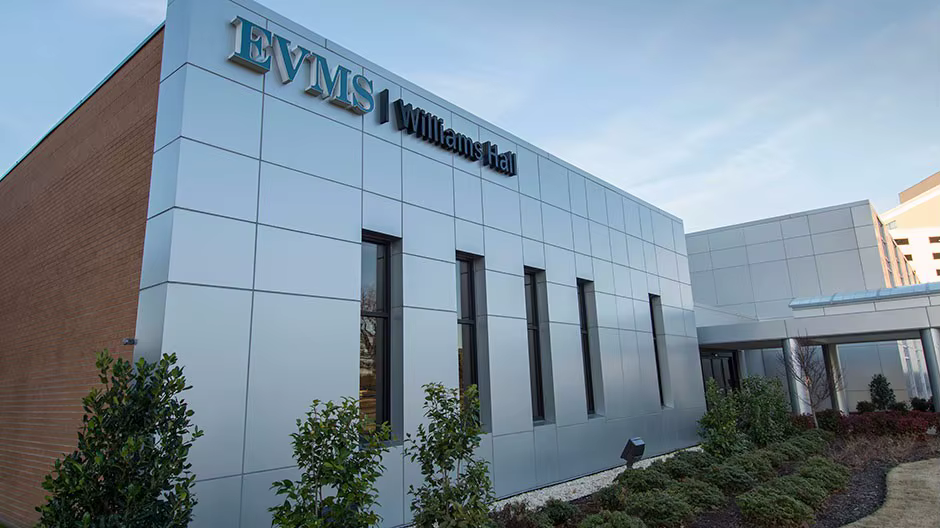

2. Facade Design
The High-Density Aluminum Composite Panel (ACP) is frequently used in facade design for both aesthetic and functional purposes. The combination of durability and aesthetic appeal makes ACP the ideal material for enhancing building exteriors. The 4mm ACP can be used for modern, clean facades that create a visually stunning effect, making it the material of choice for architects and designers looking to create striking, durable facades.
3. Interior Applications
In addition to its use in exterior applications, Aluminum Composite Panels are also used in interior design. These panels can be used to create modern, sleek partitions, decorative wall panels, and custom-designed features within commercial and residential spaces. The 4mm ACP provides the perfect balance of form and function, ensuring that it contributes to both the aesthetics and durability of your interior design project.
4. Signage and Advertising
Aluminum Composite Panels are widely used for creating high-quality signage and advertising boards. Their smooth, printable surface allows for high-definition printing, ensuring that your branding, logos, or advertisements stand out. The 4mm ACP is ideal for both indoor and outdoor signage applications, offering durability and a professional appearance that withstands environmental conditions.
5. Furniture Manufacturing
Due to its versatility and durability, Aluminum Composite Panels are also used in furniture manufacturing. The 4mm ACP can be used for creating modern, stylish furniture pieces such as tables, cabinets, and shelving units. The lightweight nature of the material makes it easy to handle and install, while its strength ensures long-lasting performance.
![]() |
![]() |
![]() |
Facade |
Shopfront |
UV Printing |
1. Reliable Quality and Certification
Our High-Density Aluminum Composite Panels are manufactured according to the highest quality standards. Certified by SGS and ISO 9001:2015, these panels ensure superior performance, durability, and consistency, providing you with the confidence you need for your construction or design project.
2. Cost-Effective Solution
The 4mm ACP offers an affordable yet durable solution for a wide range of applications. With competitive pricing and long-term performance, this product provides excellent value for money, helping you stay within budget while still achieving a high-quality finish.
3. Fast and Efficient Delivery
We prioritize efficient delivery to ensure that your Aluminum Composite Panels arrive on time and in perfect condition. Whether you're working on a large project or a smaller-scale installation, we guarantee fast and reliable delivery, ensuring that your project stays on schedule.
4. Versatility in Design and Application
From wall cladding and facades to signage and interior decor, our 4mm ACP is a versatile material that can be used in a variety of applications. The wide range of customization options available ensures that this material can be adapted to meet the specific needs of any project, making it an ideal choice for architects, designers, and contractors alike.

Our High-Density Aluminum Composite Panel (ACP) is an affordable, durable, and versatile solution for all your construction and design needs. With its superior strength, weather resistance, and customizable options, this 4mm ACP is the perfect choice for projects requiring reliable and stylish wall cladding, facades, signage, and more. Whether you are working on a large-scale commercial building or a small residential project, our ACP panels offer an excellent balance of performance and cost-effectiveness. Contact us today to request a free sample and see how our Aluminum Composite Panels can elevate your next project.
