Located in Taizhou, which is a prosperous seaside city, our factory was established in 1983 and is one of municipal key enterprises. Our factory specializes in Aluminum Composite Panel, PVC Wall Panel& Cornice and PVC Foam Board, and it covers 20000 square meters total areas, and 23000 square meters of building areas. With rich production experience, strong technical force, complete production equipment and strict quality-supervising measures, we are now a large-scale joint-stock enterprise and a member of China Building Materials Industry Association, with subsidiary of Luckybond Brand.
3mm Acp Sheet Price Aluminium Composite Panel Manufacturer Fire Resistant Construction Dibond Wall Cladding Alucobond Price
Alloy of Aluminum Layers: AA1100H18
Tensile Strength of Aluminum: Rm: I 45-I 85 N/mm²
0.2% Proof Stress: Rp 0.2: 110- 175 N/mm²
Elongation: A50＞3%
Liner Thermal Expansion: 2.0 mm/m(100℃ temperature difference)
Description

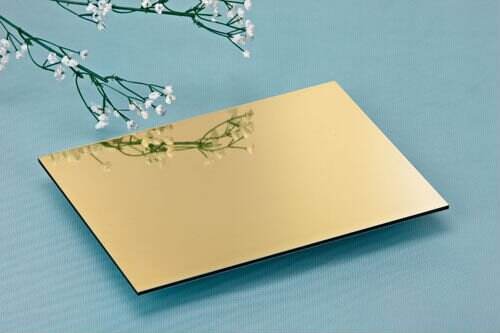

Luckybond Aluminium Composite Panel (ACP) is an advanced, high-performance material designed to meet the most demanding architectural and construction needs. Manufactured with precision, Luckybond ACP combines durability with aesthetic appeal, offering an ideal solution for modern building facades, wall cladding, and more. Available in a variety of finishes, including the elegant mirror finish, Luckybond ACP provides the perfect blend of functionality and design.
The 3mm ACP sheet, in particular, strikes the right balance between weight, strength, and flexibility. Whether you’re renovating an existing building or embarking on a new construction project, Luckybond ACP is engineered to withstand the elements and maintain its beauty over time.

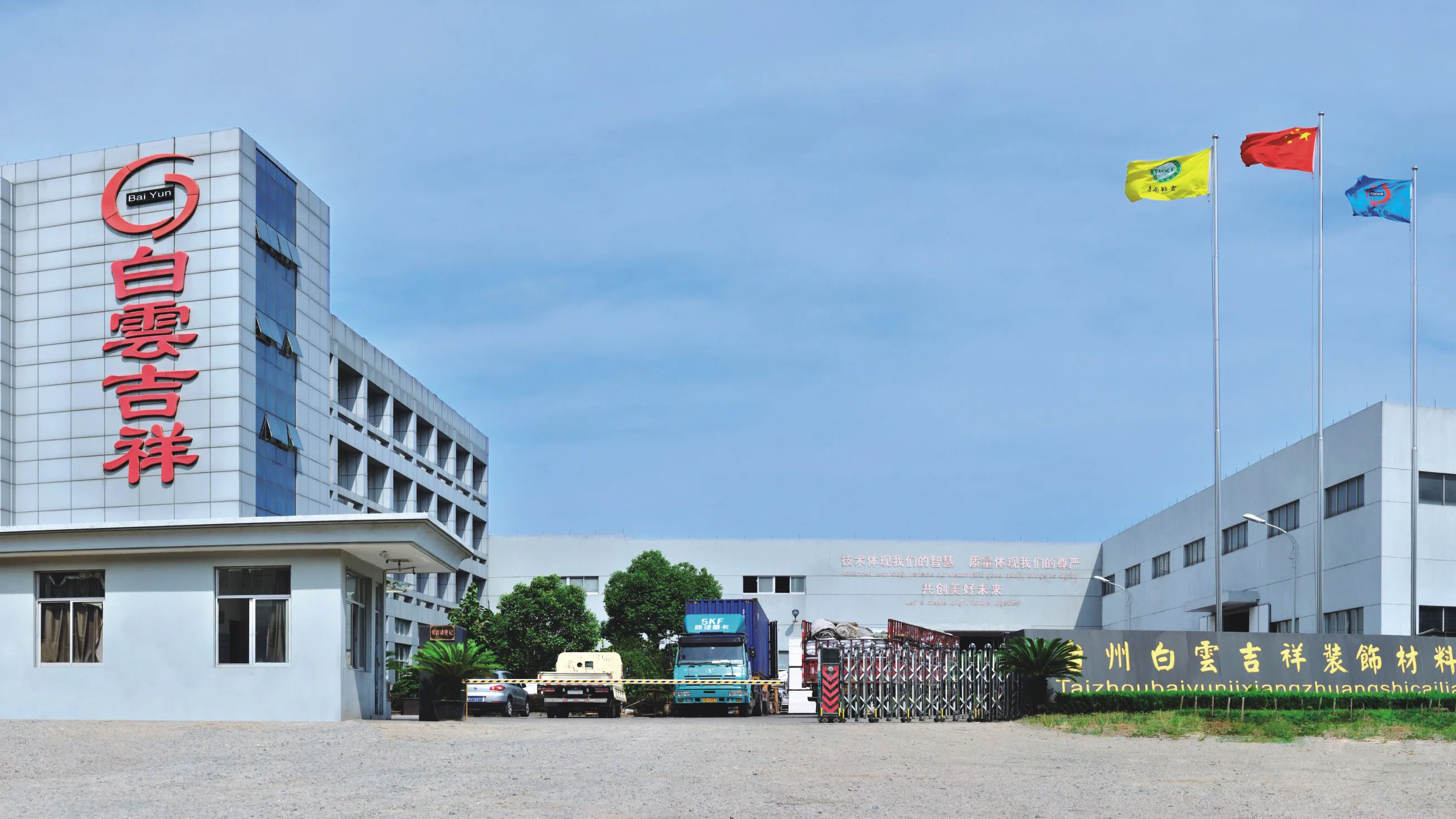

Taizhou Baiyun Jixiang Decorative Materials Co., Ltd.

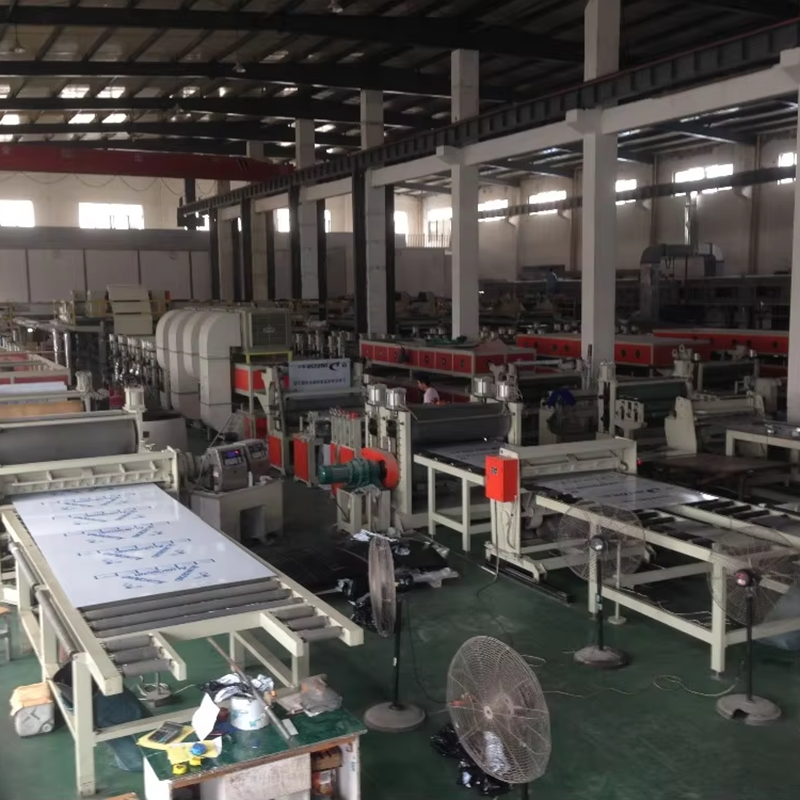

Production Lines
Coil Storage

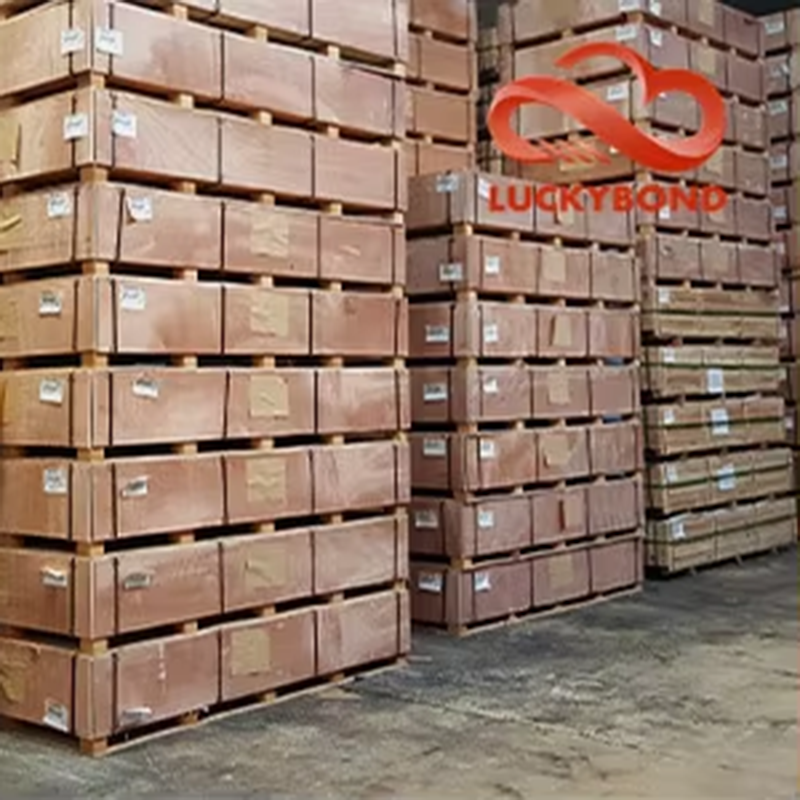

ACP Warehouse
QC System
Technical data sheet
Luckybond Signage Grade
Luckybond Signage Grade |
||||
Panel Thickness |
Units |
2mm |
3mm |
4mm |
Thickness of Aluminum Layers |
mm |
0.21/0.21 |
0.21/0.21 |
0.4/0.4 |
Weight |
Kg/m² |
3.1/3.4 |
4.0/4.3 |
4.9/5.2 |
Section Modulus W |
cm³/m |
0.51 |
0.81 |
1.11 |
Rigidity(E.I) |
KNcm³/m |
345 |
865 |
1620 |
Alloy of Aluminum Layers |
AA1100H18 |
|||
Tensile Strength of Aluminum |
N/mm² |
Rm: I 45-I 85 |
||
0.2% Proof Stress |
N/mm² |
Rp 0.2: 110- 175 |
||
Elongation |
% |
A50＞3% |
||
Liner Thermal Expansion |
2.0 mm/m(100℃ temperature difference) |
|||
Lacquering |
Coil Coating. Fluorocarbon(e.g.PE) |
|||
Gloss(initial value) |
% |
30-90 |
||
Pencil Hardness |
2H |
|||
Temperature resistance |
℃ |
-50~ +80 |
||
Coating Thickness |
18μm |
|||
T-bend |
2T |
|||
Adhesion |
grade 0.1mm*1mm*100/100 w/o fall off |
|||
Solvent Resistance |
Beearable 100times（butannone) |
|||
Impact Resistance |
1/2φ*500g*30cm no rip |
|||
Boil water Resistance |
2h*98℃ no change |
|||
Color difference |
△E≤2.0 |
|||
Luckybond Building Grade
| Thickness | Unit | 4mm | 6mm |
| Thickness of Aluminum Layer’s Weight | mm | 0.5 | |
| Weight | Kg/m² | 7.5 | 10.5 |
| Fabrication width | mm | 1220-1520 | |
| Section Modulus(W) | cm³/m | 1.75 | 2 |
| Rigidity(E· l) | KNcm²/m | 2400 | 3100 |
| Alloy | EN AW-3003A | ||
| Temper of Cover Sheets | H 18/ H22 | ||
| Modulus of elasticity | N /mm² | 70000 | |
| Tensile Strength of cover sheets | N /mm² | Rm ≧ 130 | |
| Proof Stress (0.2%) | N /mm² | Rp0.2 ≧90 | |
| Elongation | % | A50≧5 | |
| Liner Thermal Expansion | 2.4 mm/m bei 100℃ temperature difference | ||
| Lacquering | Coil Coating. Fluorocarbon(e.g. PVDF) | ||
| Gloss(initial value) | % | 30-45 | |
| Pencil hardness | 2H | ||
| Temperature resistance | ℃ | -50~ +80 | |
Advanced
Lightweight Yet Durable
At just 4.0-4.3 kg/m², the 3mm ACP sheet is light enough to facilitate easy handling and installation. Despite its low weight, the panel retains high rigidity and strength. The section modulus (W) for the 3mm sheet is 0.81 cm³/m, and the rigidity (E.I) is 865 KNcm³/m, ensuring both durability and structural integrity.
Sustainability and Eco-Friendliness
Luckybond ACP contributes to sustainability in the construction industry. The panel's longevity means fewer replacements are needed, which ultimately reduces waste. Additionally, the material is made from high-quality, eco-friendly materials, promoting greener building practices.
Versatile Application Possibilities
The versatility of Luckybond ACP allows it to be used in a wide range of applications. Whether you are building a new structure or renovating an existing one, the 3mm ACP sheet can be used for cladding, facades, and even signage. The panel’s flexibility also makes it ideal for UV printing, offering endless creative possibilities for branding and design.
Fire-Resistant Properties
Luckybond ACP offers fire-resistant options, ensuring that it complies with safety regulations and provides an additional layer of protection for high-rise buildings and commercial properties. The material can be customized to include fire-resistant cores, making it a safe and reliable choice for a variety of construction projects.
Product Features
Superior Aluminium Alloy Construction
Luckybond ACP is constructed with AA1100H18 aluminium layers, known for their excellent corrosion resistance, formability, and strength. The tensile strength of the aluminum ranges from 45 to 85 N/mm², making it robust enough for a variety of applications, while the elongation rate of more than 3% ensures flexibility without sacrificing durability.
Exceptional Performance Under Temperature Fluctuations
Luckybond ACP boasts impressive resistance to temperature changes. With a linear thermal expansion rate of 2.0 mm/m (100°C temperature difference), it performs well in environments with significant temperature fluctuations, making it suitable for both hot and cold climates.
Lacquered Surface Finishes
Luckybond ACP comes with a high-quality stove-lacquered finish, available in single-side or double-side versions. The fluorocarbon coating (such as PE) provides excellent UV resistance, color retention, and weatherability, making it ideal for both interior and exterior applications.
Superior Coating and Durability
The lacquered finish is built to last. With a coating thickness of 18μm, the panel is highly resistant to scratches, impacts, and solvents. It can endure 100 cycles of butanone exposure without deterioration and maintains its color integrity with a color difference of less than ΔE≤2.0. The pencil hardness of the surface is rated at 2H, ensuring excellent scratch resistance.
High Temperature Resistance
Luckybond ACP is designed to withstand high temperatures, with a temperature resistance range from -50°C to +80°C. This makes it an excellent choice for a variety of applications where heat resistance is essential.
Product Applications
Luckybond 3mm Aluminium Composite Panel is perfect for a variety of architectural, commercial, and industrial applications. The panels are highly versatile, offering solutions for both interior and exterior projects. Some of the most common applications include:
Building Facades and Exterior Cladding

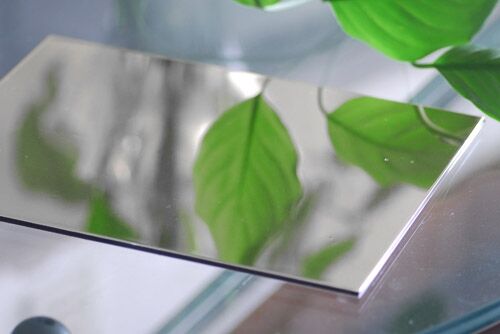

The 3mm ACP sheet is ideal for use in exterior cladding and building facades. Its durable, weather-resistant finish ensures that the panels maintain their sleek appearance despite exposure to harsh weather conditions. The mirror finish, in particular, provides an elegant, modern look that enhances the aesthetic value of any building.
Shopfronts and Commercial Buildings
Luckybond ACP is frequently used for shopfronts, signage, and commercial building facades. The material’s light weight and ease of installation make it an excellent choice for projects where time and cost-efficiency are crucial. The high-quality finish offers a professional look that enhances the brand image of businesses.
Interior Wall Cladding
The 3mm ACP sheet is also perfect for interior applications. It can be used to create sleek, modern wall cladding for offices, shopping malls, airports, and other commercial spaces. The variety of finishes, including the mirror finish, allows for customization to suit any interior design.
UV Printing and Branding
Luckybond ACP is a popular choice for UV printing due to its smooth surface and superior color retention. This makes it ideal for creating custom signage, advertisements, and branded displays that require high-quality printing with long-lasting durability.
A Commitment to Quality and Innovation
Luckybond is committed to providing high-quality, innovative solutions for the construction and architectural industries. With a focus on performance, aesthetics, and sustainability, our 3mm Aluminium Composite Panel ensures that your building projects are equipped with materials that stand the test of time.
Whether you’re looking for a durable solution for your building facade, a lightweight option for interior cladding, or a versatile material for UV printing, Luckybond ACP offers the perfect solution. With outstanding strength, aesthetic appeal, and long-lasting performance, Luckybond Aluminium Composite Panels are the future of architectural design..
